MicoAir MG-F10-A Dual-Frequency GNSS Module User Manual

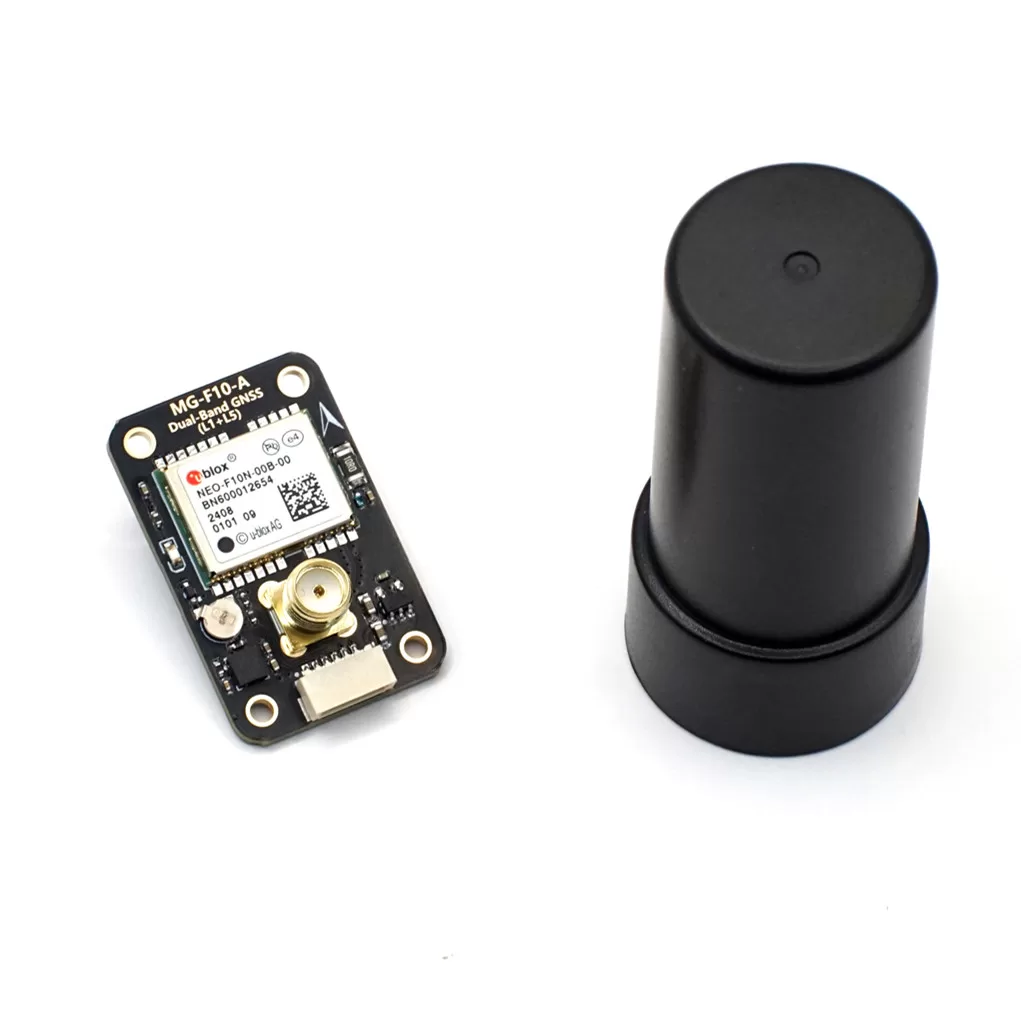

Product Overview
MG-F10 is MicoAir's latest-generation dual-frequency GNSS positioning module developed specifically for UAV applications. It combines the latest u-blox NEO-F10N dual-frequency receiver with a high-gain, full-band quadrifilar helical antenna. The module supports combined dual-frequency L1+L5 positioning across GPS, BeiDou, Galileo, and NavIC. Among current GNSS products other than RTK differential-positioning solutions, this provides the best positioning performance, making the module especially suitable for multirotor and fixed-wing UAVs that require high positioning and velocity accuracy.
Purchase

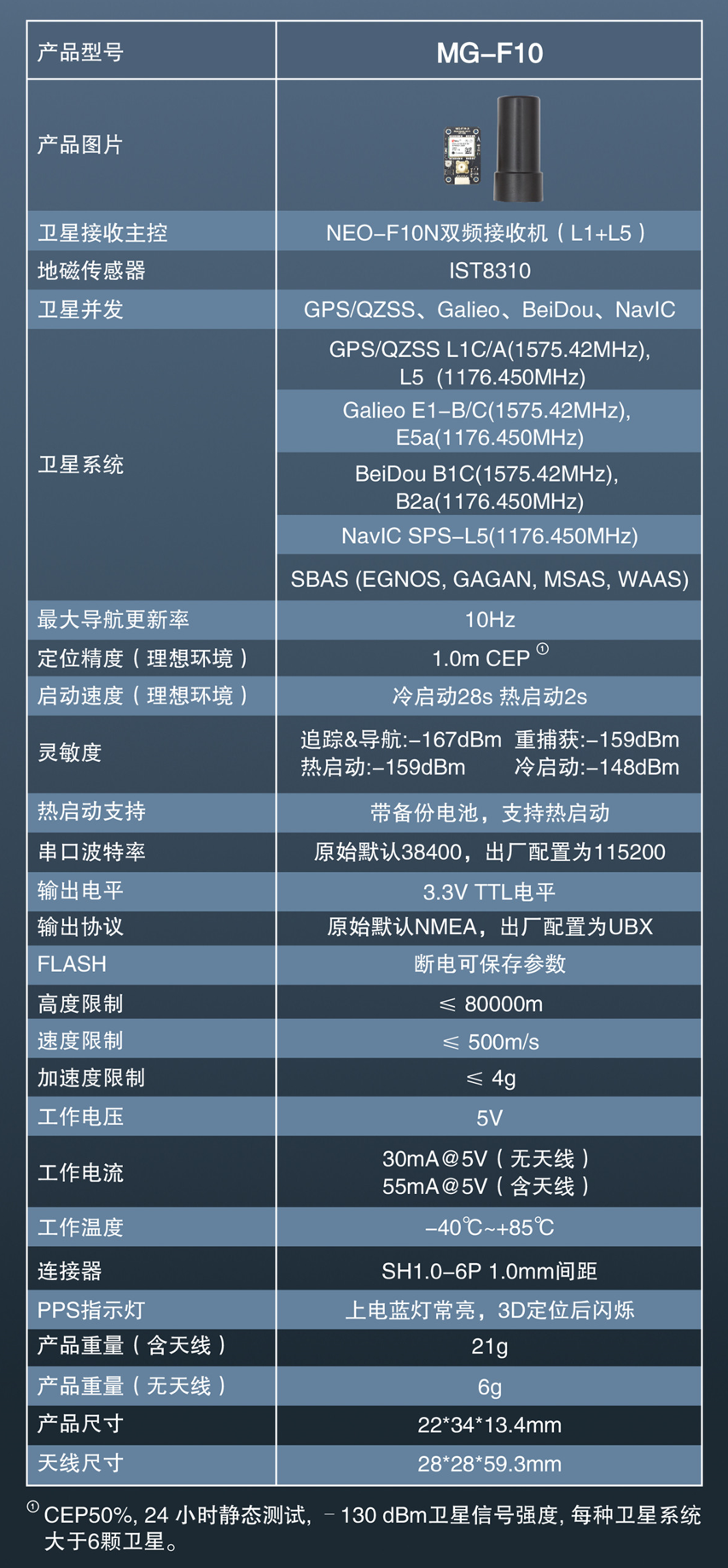

Specifications

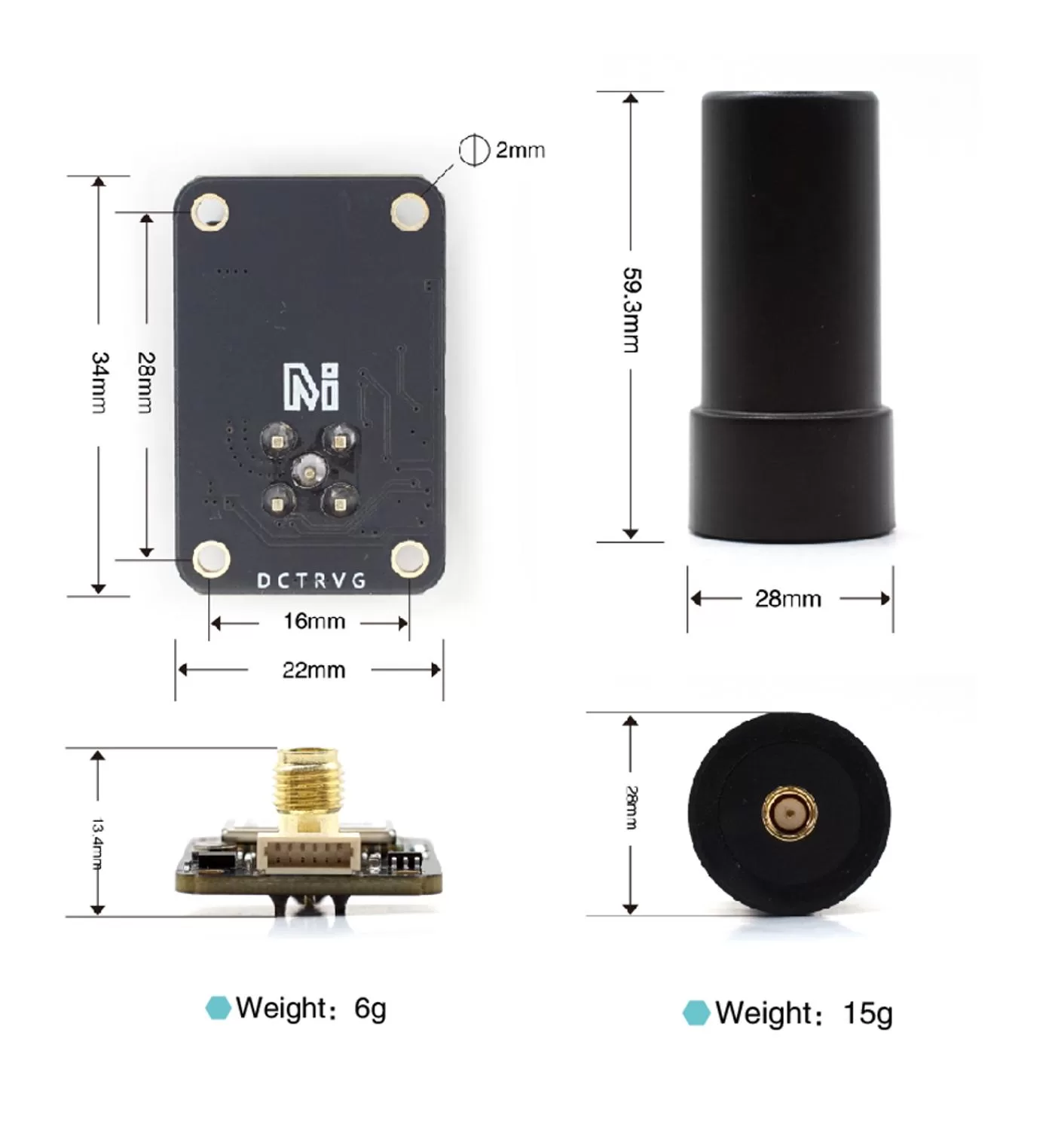

Dimensions

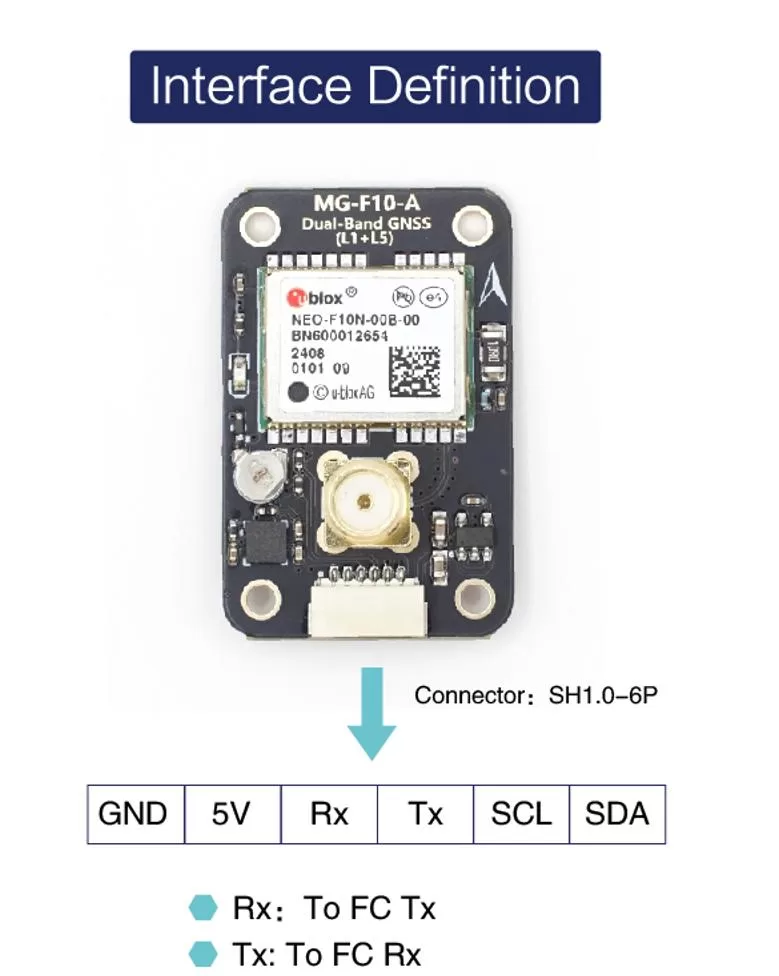

Connector Pinout
- GND: connect to the flight controller power GND
- 5V: connect to the flight controller 5 V supply
- Rx: connect to the flight controller UART Tx
- Tx: connect to the flight controller UART Rx
- SCL: connect to the flight controller SCL
- SDA: connect to the flight controller SDA

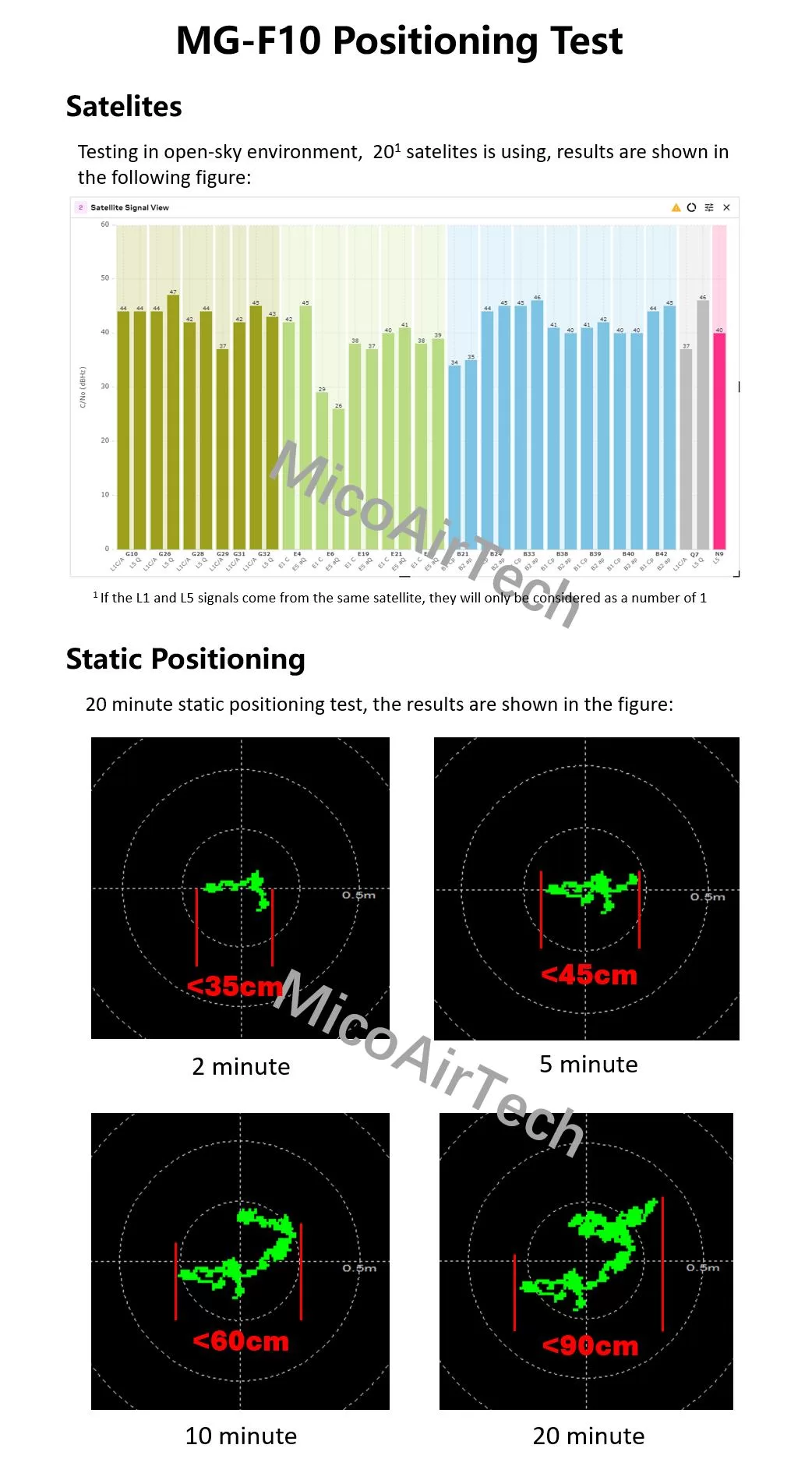

Product Test
